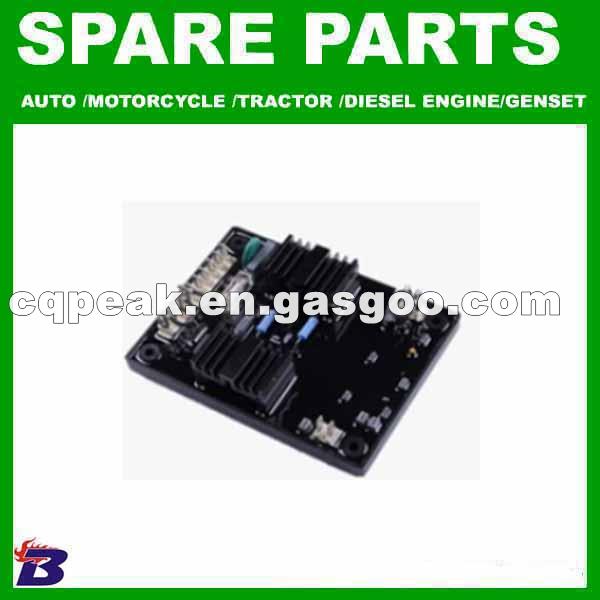

Automatic Voltage Regulator (AVR) AVR WT-2
Voltage:24v
Current:4A
Size:165mm*145mm*55mmmm
Current Type:DC
Phase:Three Phase
GENERATOR
Product Description
Three-phase synchronous generator AVR WT-2 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Input Voltage: 190-264V ac Frequency: 50/60 Hz nominal Output Voltage: 90V DC Current: continuous 8A dc,Intermittent 15A for 10 secs Regulation: +/- 1%
