Automatic Voltage Regulator (AVR) AVR WT-3

Language Translator

OEM No/Model:	165mm145mm55mm
Minimum Order:	1PCS
Export Ratio:	91% - 100%
Samples:	Charge
Place of Region:	CHONGQING
Payment Terms:	L/C,D/A,D/D,CASH
Delivery Time:	WITHING 5-7 DAYS
Market Type:	After Market
Packing:	NORMAL BOX
Current Export Market:	North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa

Product Details

Product Name:

Automatic Voltage Regulator (AVR) AVR WT-3

Product Attribute:

Voltage:24v

Current:4A

Size:165mm*145mm*55mmmm

Current Type:DC

Phase:Three Phase

Application:

GENERATOR

Product Description:

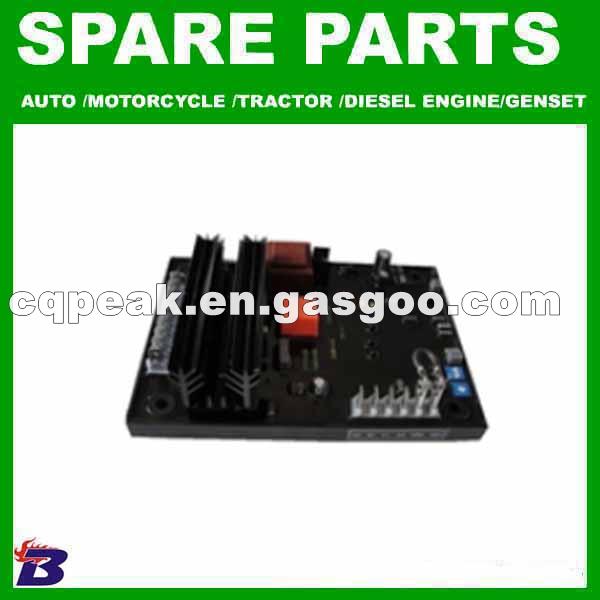

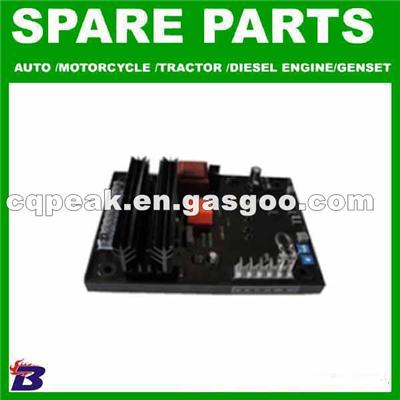

Automatic Voltage Regulator (AVR)
AVR WT-3

Signal voltage (AC)	Terminal V0-V220 Input: 180-250Vac 50/60 Hz
	Terminal V0-V380 Input: 370-450Vac 50/60 Hz
Output (DC)	Maximum continuous 6A,90 Vdc (220Vac input)
Maximum output current (DC)	Max.12A, 10s
Field winding resistance	Min.8
Voltage Input (AC)	180~250Vac, 45-600 Hz
Voltage adjustment range	180-250 Vac;370-480Vac
voltage-regulating precision	<±0.5% (when Engine changes in less than 4%)
voltage drift	<0.05%/
Response time	<1 cycle
voltage buildup	AVR input voltage is > 8 Vac , 35Hz

Automatic Voltage Regulator (AVR) AVR WT-3
