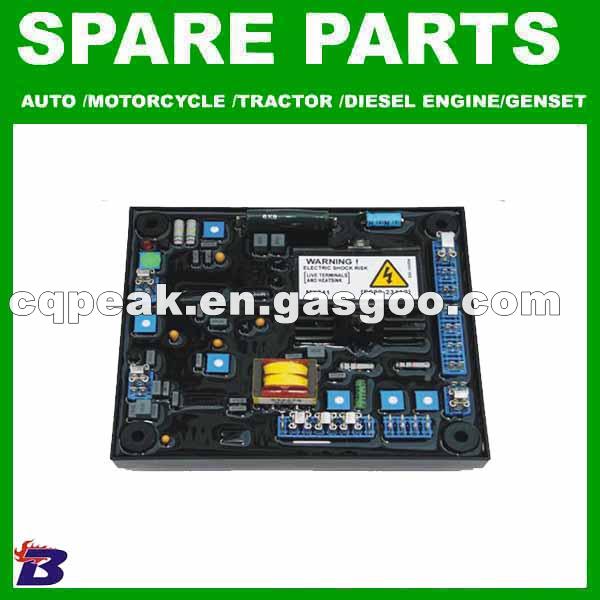

Automatic Voltage Regulator (AVR) AVR MX341

Language Translator

OEM No/Model:	165mm145mm55mm
Minimum Order:	1PCS
Export Ratio:	91% - 100%
Samples:	Charge
Place of Region:	CHONGQING
Payment Terms:	L/C,D/A,D/D,CASH
Delivery Time:	WITHING 5-7 DAYS
Market Type:	After Market
Packing:	NORMAL BOX
Current Export Market:	North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa

Product Details

Product Name:

Automatic Voltage Regulator (AVR) AVR MX341

Product Attribute:

Voltage:24v

Current:4A

Size:165mm*145mm*55mmmm

Current Type:DC

Phase:Three Phase

Application:

GENERATOR

Product Description:

Automatic Voltage Regulator (AVR) AVR MX341

Product Description

1.AVR MX341

2.Stability selection & adjustment
3.Under frequency roll off adjustment
4.two phase sensed brushless avr

Stamford Automatic Voltage Regulator MX341
used for brushless generator sets
ISO9001 Quality System Certification

MX341 Automatic Voltage Regulator

stamford avr

avr for stamford generator
Be applicable for separated excited alternator, brushless generator with the frequency of 50HZ

Sensing Input	Voltage	190-264V ac max, 1 phase, 2 wire
	Frequency	50-60 Hz nominal
Power Input(PMG	Voltage	140-220V ac max, 3 phase, 3 wire
	Current	3A/phase
	Frequency	100-120 Hz nominal
Output	Voltage	Max 120V dc
	Current	Continuous 2.7 A Intermittent 6A for 10 secs
	Resistance	15 ohms minimum
Regulation		+/- 1%
Thermal Drift		0.02% per Deg. C change In AVR ambient	0.03% per Deg. C change In AVR ambient
Soft Staret Ramp Time		3 seconds
Typical system response	AVR response	10ms

Automatic Voltage Regulator (AVR) AVR MX341
