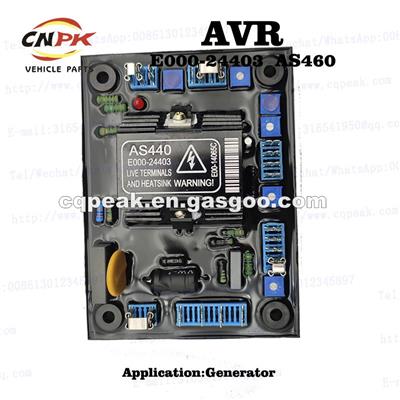

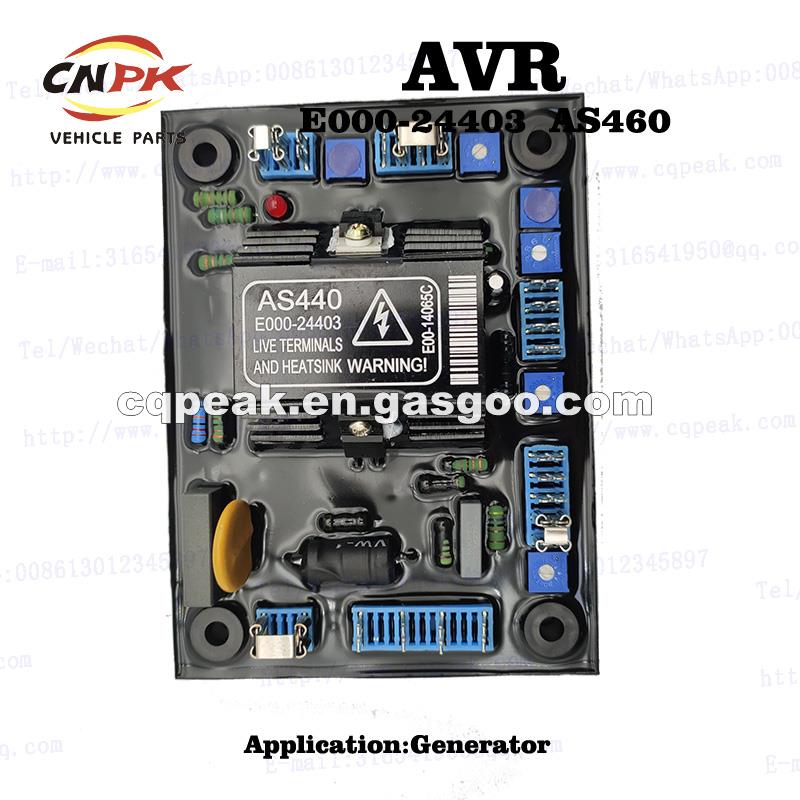

Generator Parts: Replacement Stamford 10000-17096 E000-24403 Automatic Voltage Regulator AVR AS440

Generator Parts: Replacement Stamford 10000-17096 E000-24403 Automatic Voltage Regulator AVR AS440
Generator Parts: Replacement Stamford 10000-17096 E000-24403 Automatic Voltage Regulator AVR AS440
Previous
Next
OEM No/Model:

10000-17096,E000-24403

Minimum Order:

1PCS

Export Ratio:

91% - 100%

Samples:

Charge

Place of Region:

CHONGQING

Payment Terms:

L/C,D/A,D/D,CASH

Delivery Time:

WITHING 5-7 DAYS

Market Type:

After Market

Packing:

NORMAL BOX

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa

Product Details

Product Name:

Generator Parts: Replacement Stamford 10000-17096 E000-24403 Automatic Voltage Regulator AVR AS440

Product Attribute:

Voltage:24v

Current:4A

Size:165mm*145mm*55mmmm

Current Type:DC

Phase:Three Phase

Application:

GENERATOR

Product Description:

 Automatic Voltage Regulator (AVR) AVR AS440





Brushless Alternator Spare Parts  Generator AVR AS440





Sensing input


Voltage Jumper selectable 100-130V ac 1 phase or 190-264V ac 1 phase
Frenquency  50-60Hz nominal
Power input
Voltage   100-264V ac 1 phase
Frequency 50-60Hz nominal
Output
Voltage    82V dc @200V ac
Current      continuous 4A
transient 7.5A for 10 secs
Resistance 15 ohms min (10 ohms min when input volts i s less than 175ac)
Regulation +/-1.0%
Thermal Drift 0.03% per deg. C change in AVR ambient
Typical System Response AVR response  20ms
Field current to 90%  80ms
Machine Volts to 97% 300ms
External Voltage Adjustment +/-10% with 1 k ohm 1 watt trimmer
Increasing resistance lowers voltage
Under frequency Protection Set point  94-98% Hz
Unit power Dissipation 12 watts maximum


Generator Automatic Voltage Regulator(AVR) Catalogue
S/N Model S/N Model
1 8A 28 R120
2 12A 29 R150
3 15A 30 R220
4 20A 31 R230
5 6GA2-490-0A 32 R250
6 6GA2-491-1A 33 R438
7 AS440 34 R448
8 AS460 35 R449
9 AS480 36 R450
10 D610 37 R450M
11 DER1 38 R450T
12 DSR 39 SE350
13 DVR2000E 40 SR7
14 EA63-4 41 STL-3
15 EA63-7 42 SX440
16 EA05A 43 SX440-A
17 ETC-1 44 SX460
18 GAVR-8A 45 SX460-A
19 GAVR-12A 46 SX480
20 GAVR-15B 47 WT-2
21 GAVR-20A 48 WT-3
22 M40FA640A 49 VR6
23 M16FA655A 50 UVR6
24 MX321
25 MX321-A
26 MX341
27 MX341-A
