Product Name:
Automatic Voltage Regulator (AVR) AVR SR7
Product Attribute:
Voltage:24v
Current:4A
Size:165mm*145mm*55mmmm
Current Type:DC
Phase:Three Phase
Application:
GENERATOR
Product Description:

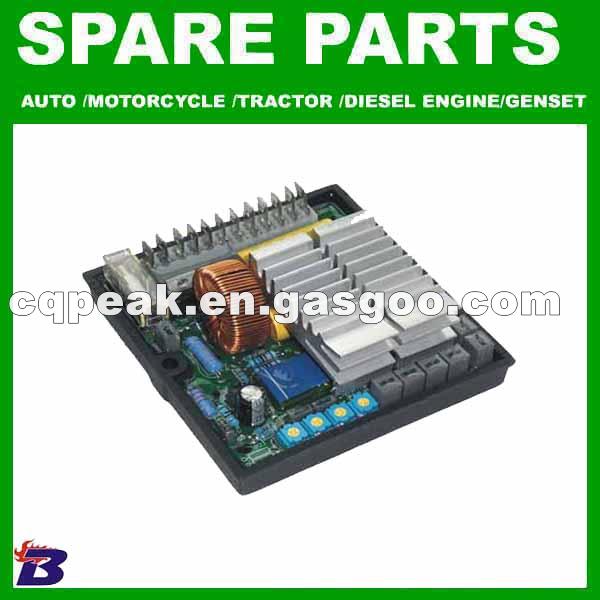

Automatic Voltage Regulator (AVR)
AVR SR7
The SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine.
1.SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator.
2. Sr7 running and during starting, also equipped with a complete
protection system against operation conditions that could be dangerous for the machine.
3.SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator.
4.Suitable for being used with all alternators and is standard supply for
power outputs below 85 KV, both three-phase and single phase.
Others:EA05A,KXT-2WC,KXT-2WC1B
5.SR-7 AVR in stock for quick delivery.
6.SR-7 AVR/ Automatic Voltage Regulator
AVR SR7
THE TECHNICAL DATA OF SR7 AVR AS FOLLOWING:
|
Sensing Input
|
Terminal 1,2 3,4 5,6
Can be connected to Y or
220~480VAC Single Phase 50/60HZ
|
|
Power Input
|
50~280VAC (1,2)
50/60HZ
|
|
Output Voltage
|
Maximum 90VDC @ 220VAC
Harmonic Wave
|
|
Output Current
|
Continuous 6A Maximum 8A for 10 sec.
|
|
Over Excitation Protection
|
25~55VDC @ 0.1~20 sec.
|
|
Under Frequency Protection
|
U/F Range 42~60HZ
|
|
Voltage Regulation
|
< ±1% (with 6% engine governing)
|
|
External Volts Adjustment
|
±5% @ 100K
|
|
Voltage Build-up
|
Residual Voltage above 5 VAC 25HZ
|
|
EMI Suppression
|
Internal Electromagnetic Interference Filtering
|
|
Excitation Winding Resistance
|
DC Resistance 10~100
|
The SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The SR-7 regulator is suitable for being used with all Mecc Alte alternators and is standard supply for power outputs below 85 KVA, both three-phase and single phase.
