Product Name:
Automatic Voltage Regulator (AVR) AVR 20A
Product Attribute:
Voltage:24v
Current:4A
Size:165mm*145mm*55mmmm
Current Type:DC
Phase:Three Phase
Application:
GENERATOR
Product Description:

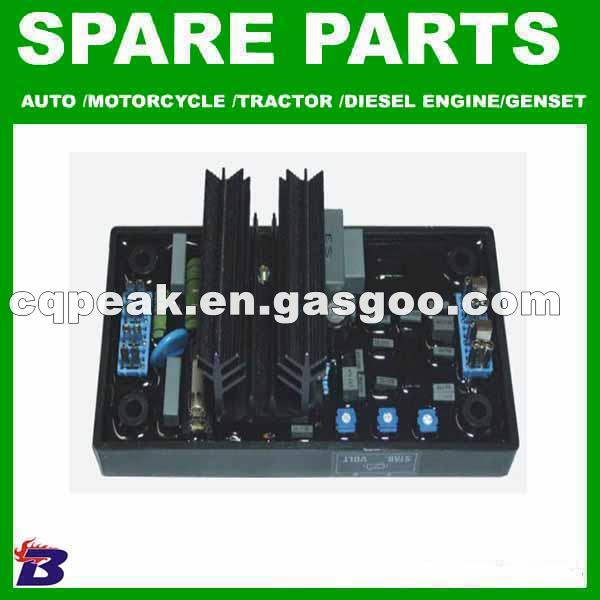

Automatic Voltage Regulator (AVR)
AVR 20A
GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.
*Sensing Input Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 15A for 10SEE
Resistance Min.10 Max 100
*Voltage Build-up esidualvolts at AVR teminal >5VAC
*External Volts Adjustment +/-7%with 1K 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
GAVR 12A
*SensingInput Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 10A for 10SEE
Resistance Min.10 Max 100
*Voltage Build-up esidualvolts at AVR teminal>5VAC
*External Volts Adjustment +/-7%with 1K 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
Techinal Data:
Model |
GAVR-20A |
Sensing Input Voltage |
220/400VAC,1phase 2wire |
Power Input Voltage |
180~240VAC, 1phase 2wire |
Output |
Voltage Max.90VDC@240VAC input |
Current Continuous 6A |
Intermittent 15A for 10SEE |
Resistance Min.10 Max 100 |
Voltage Build-up |
esidualvolts at AVR teminal >5VAC |
External Volts Adjustment |
+/-7%with 1K 1watt trimmer |
Unit Power Dissipation |
Max.8Watt |
Under Frequency Protection |
60Hz system presets knee point at 57Hz |
Factory Settings |
50Hz system presets knee point at 47Hz |
