Automatic Voltage Regulator (AVR) AVR R438

Language Translator

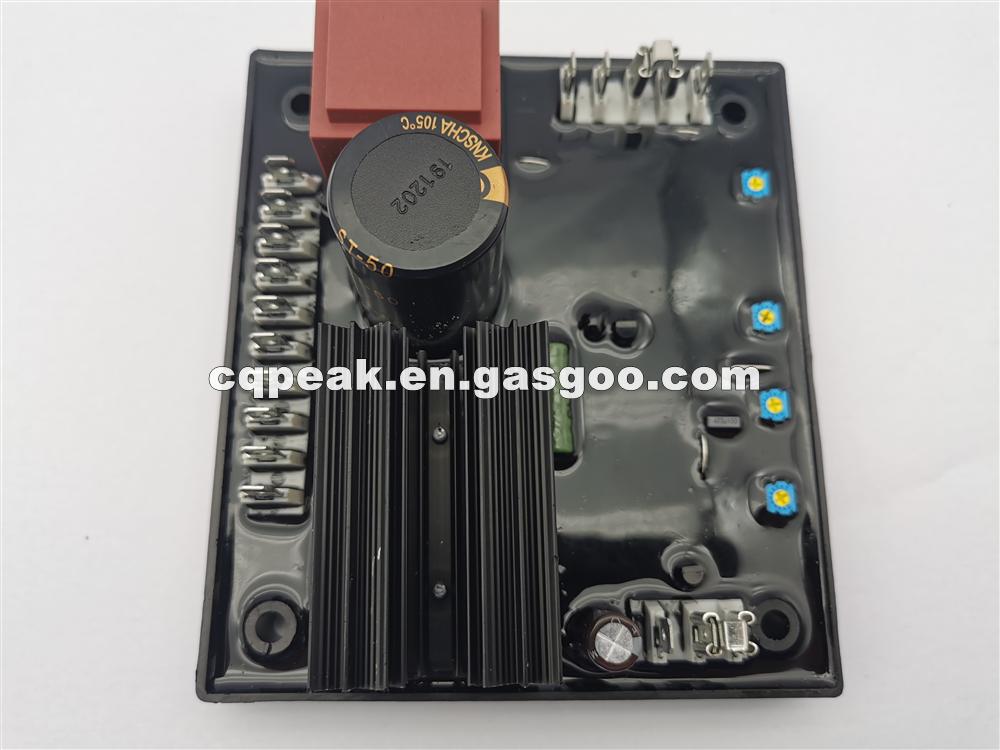

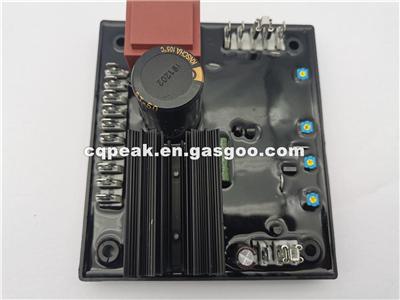

Automatic Voltage Regulator (AVR) AVR R438 - img2

Automatic Voltage Regulator (AVR) AVR R438 - img3

Automatic Voltage Regulator (AVR) AVR R438 - img4

Automatic Voltage Regulator (AVR) AVR R438 - img5

OEM No/Model:	R438
Minimum Order:	1PCS
Export Ratio:	91% - 100%
Samples:	Charge
Place of Region:	CHONGQING
Payment Terms:	T/T,CASH
Delivery Time:	WITHING 5-7 DAYS
Market Type:	After Market
Packing:	NORMAL BOX
Current Export Market:	North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa

Product Details

Product Name:

Automatic Voltage Regulator (AVR) AVR R438

Product Attribute:

Voltage:24v

Current:4A

Size:165mm*145mm*55mmmm

Current Type:DC

Phase:Three Phase

Application:

GENERATOR

Product Description:

Automatic Voltage Regulator (AVR)
AVR R438

Specification:

Parameter sheet of AVR R438
Input	Voltage	Jumper selectable 95-140V ac or 170-260V ac or 340-520V ac
	Frequency	50-60 Hz nominal
	Phase	1
Output	Voltage	max 90V dc at 207V ac input
	Current	continuous 4A dc, intermittent 6A for 10 secs
	Resistance	15 ohms minimum
Regulation	+/- 1.0%
Thermal Drift	0.05% per deg. C change in AVR ambient
Typical system response	AVR response	20ms
	Filed current to 90%	80 ms
	Machine Volts to 97%	300ms
External voltage adjustment	+/-10% with 1 k ohm 1 watt trimmer
Under frequency protection	Set point	95% Hz
	Slope	170% down to 30 Hz
Unit power dissipation	12 watts maximum		10 watts maximum
Build up voltage	4 Volts @ AVR terminals

Automatic Voltage Regulator (AVR) AVR R438
