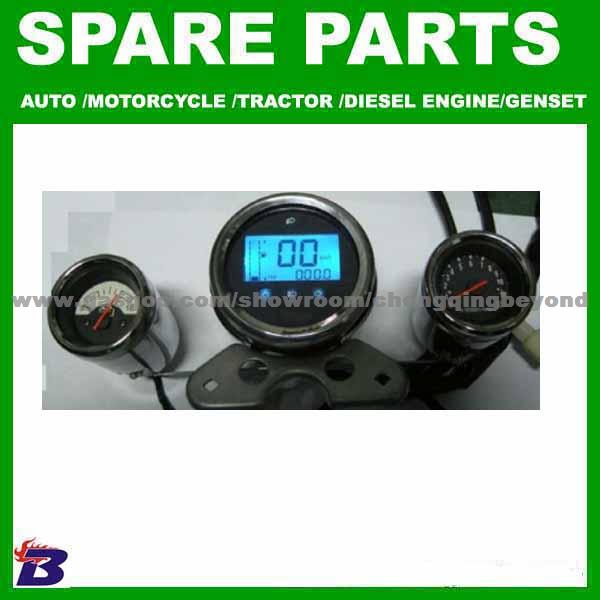

Digital Meter JXFB3B-A UTV
Voltage:12v
Type:Speedometer
Gasoline、Motorcycle、Motorboat、ATV
Product name JXFB3B-A UTV Digital meter
Applicable models Use of motor vehicle emissions below 300cc
Features
1. Working stability , LCD display accurate
2.meter with three separate combinations shown to display a more independent, Intuitive
3.voltage meter displays current voltage, speed meter displays current engine speed,speed odometer displays the current speed, single-mileage, total mileage
Product performance
item
Limit parameter
remark
Working temperature
-25~75
Relative humidity
45%~75%
Operating voltage range
DC 10~18V
Rated voltage
DC 12V
Rated current
80mA
Maximum speed display
199KM/h, each cell 1000r/min engine speed
display,maximum 12000r/min (dynamic instruction display)
single Maximum cumulative mileage
999.9Km
Clear power
Maximum cumulative mileage
99999 Km
Light description
Lights turn left,turn right light,position lights instructions for the green; high-beam instructions for the blue
Oil level analog display
When the meter appears short of oil, the LED screen flickering oil-bit symbols
Dimensions
