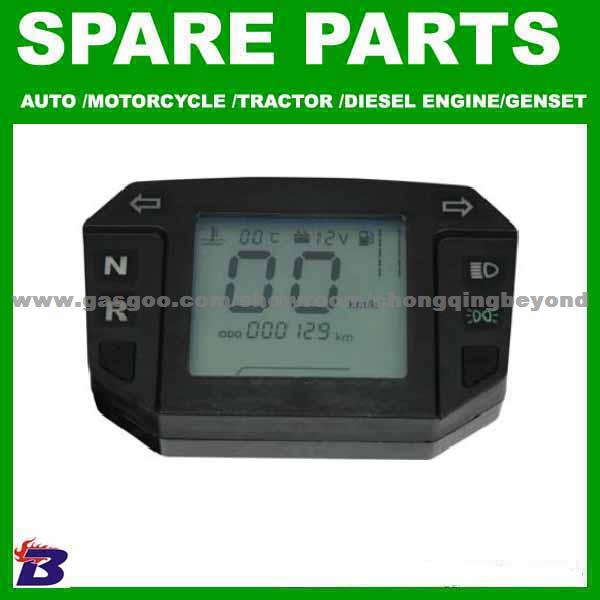

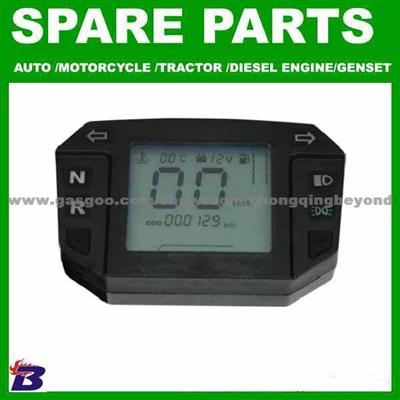

Digital Meter 300-5E ATV
Voltage:12v
Type:Speedometer
Gasoline、Motorcycle、Motorboat、ATV
Applicable models Use of motor vehicle emissions below 300cc
Features
1. Working stability , LCD display accurate
2. Indicator light breaks made by grinding a blank shot,show a clear three-dimensional
3. current electricity, water temperature digital display, real-time accurate
4. oil level analog display, dynamic visual
Product performance
item
Limit parameter
remark
Working temperature
-20~70
Relative humidity
40%~75%
Operating voltage range
DC 10~18V
Rated voltage
DC12V
Rated current
80mA
The largest single cumulative mileage
999.9Km
Clear power
Maximum cumulative mileage
99999.9Km
Maximum speed display
199 Km/h
Speed function
Each switch cell 1000rpm, 11000rpm switch can be displayed
Oil level display
E point(empty oil level) resistance was 98±2, and the oil level logo flashes a warning; F point(over oil) resistance was 10±1
Oil temperature control
Water temperature reached 75, the fan working, the water temperature lower than 65 when the fan stops working
Light description
Left turn right lights, position lights, neutral(N) instructions for the green, blue high beam direction, R instructions for the orange
Key function
MODE key, total mileage/small mileage conversion; KM/MILE key, metric/imperial conversion
Dimensions
Wiring diagram
