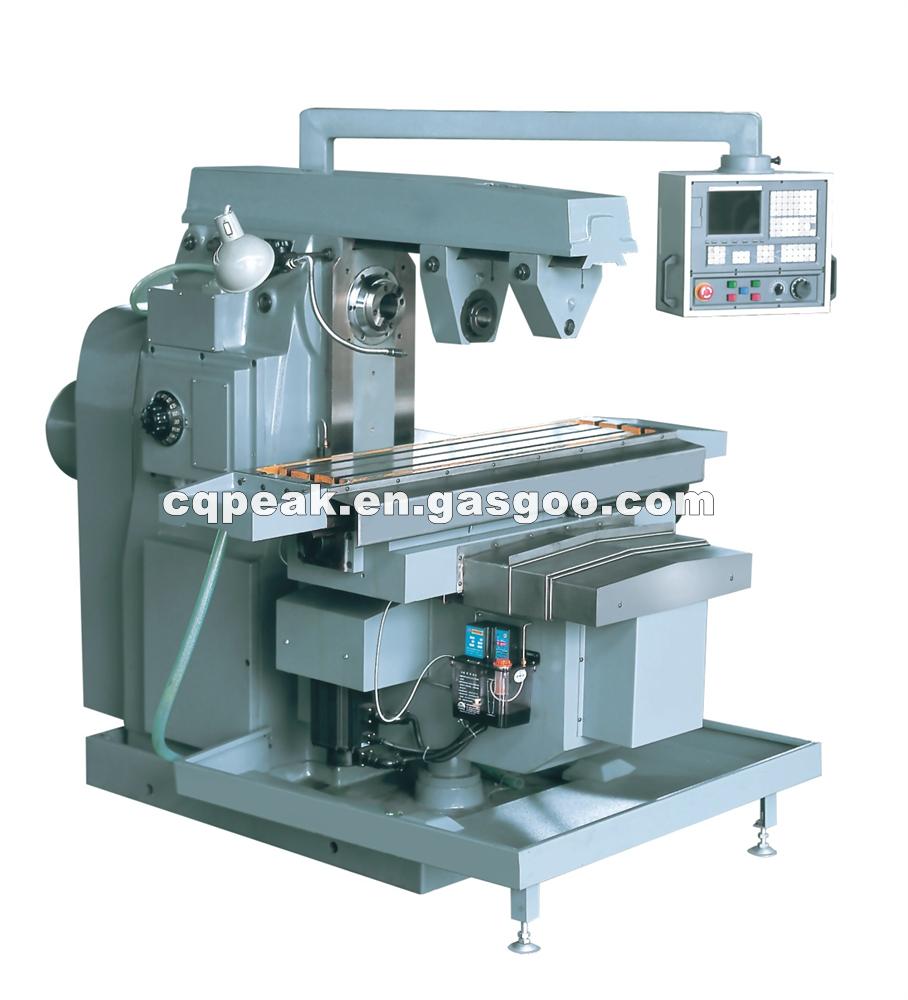

Milling Machine XK6132

Product Name:

Milling Machine XK6132

Product Attribute:

Output Power:7.5kw

Length:2245mm

Width:1780mm

Height:1920mm

Output voltage:380V

Application:

parts such as motorcycles and cars

Product Description:

Product Overview

The CNC universal knee type milling machine is newly designed,  improved milling machine equipped with servo motor, based on the common knee type milling machine, Thus, the machine can work with winder range and with better performance. The spindle keeps the 18 steps gear shifting, which guarantees much wider speed change range, Applied with servo driving, through speed reducing system, the feeding movement is realized by the power transmission to the ball screws of 3 axes.

Machine Characteristics:

CNC Milling machine can be used in 3 axis( X. Y. Z). Simultaneously control and fit for all works of complex and high accuracy, such as cam, templates, molding tool, curved grooves, etc. The machine is suited in various workshops of machinery building and military industry.

Construction features:

1. All slide ways adopt high quality cast or hardened, ensure high wearability and rigidity.

2. Electronic pump centralized lubricating system.

3. Three axis adopts high accuracy ball screw and drived by servo or step motor to ensure high  sensitivity and accuracy.

4. Imported or domestic CNC systems for your choose, with a stable system performance, machines can be easily and efficiently operated.

5. Optional CNC system: KND, GSK, Siemens, FANUC etc. The 4-axis is optional.

Machine Parameter
