Product Name:

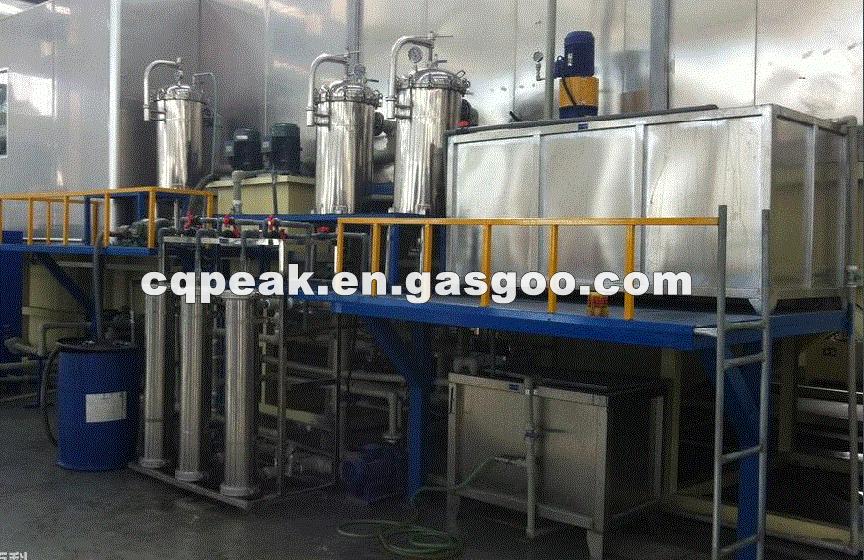

Electrophoretic Equipment
Product Attribute:
Application:
Metal parts such as motorcycles and cars
Product Description:
Electrophoretic equipment ( electrophoretic bath, spray bath, electrophoretic power supply, electrophoretic recovery ultrafilter, electrophoretic coating equipment) electrophoretic paint (color electrophoretic paint, cathodic electrophoretic paint, anodic electrophoretic paint) products are matt, flat light, highlight and colorful;. Performance is in the advanced level of the same products in China. Widely used in automotive, household appliances and all kinds of steel parts corrosion resistance coating etc.
Electrophoretic bath (main channel)
An electrophoretic bath liquid is stored and coated in it for electrophoretic coating. By ensuring the thickness of the target film to determine the capacity of the tank, all the other devices of the electrophoretic coating serve the slot.To ensure that the film generated "throwpower, film thickness distribution, divided into primary and auxiliary tank, tank by a slot to the auxiliary tank overflow.
Tank liquid circulating mixing system
The trough liquid is set at the bottom of the tank, and the slot liquid is blown out, and the groove is stirred to keep the paint uniform in the tank. It prevents pigments from settling, cooling and heating the coating surface, and removes the diffusion of the electrolytic bubbles. It consists of the circulating pump, the groove pipe, the blow nozzle and so on, and forms the pipe in the groove. The nozzle uses plastic products and stainless steel material is used in the outside pipe to prevent electrical erosion.
Filter device
Coarse filter: filter out the foreign objects in the sink and protect the circulation pump. Precision filter: remove dust and particles from the bath, and reduce the dust and grain defects of the body surface. Multiple use of the metal class type, multipurpose fiber, through a large cylindrical volume or bag type.
Heat exchanger
Exchange of electrical energy and the mechanical energy of the pump work to convert the heat to ensure that the temperature of the bath is 28 + 1 degrees C. As the anode of cathodic electrophoretic, the heat exchanger is installed in the circulating pipe of the slot, and the stainless steel plate heat exchanger is used. It is usually cooled by 7~10 degrees C water and heated with warm water at 40~45 degrees C.
Electrode and polar liquid circulation system
The residual neutralization acid (HAc) produced by the electrophoresis is removed, and the neutralization concentration is stable, so as to achieve the purpose of electrophoretic coating and maintaining the acid concentration in the trough. The electrode has two kinds of membrane electrode and bare electrode, and the electrode is acid resistant stainless steel (SUS316 and so on).
DC electrophoretic power supply
The rectifier generates the rectifier power stroke current. As a (-1) pole, the cathodic electrophoretic situation requires a large capacity power supply for the continuous production of the wire through the insulated junction and the traverse side of the pylon.
Reserve slot (replacement tank)
For regular cleaning and maintenance of time and space electrophoretic trough, temporary storage tank liquid, in order to prevent the bath liquid precipitation and deterioration, also need to circulate agitation.
Electrophoretic coating room
Protection of electrophoretic tank, anti electric shock, anti - solvent vapor diffusion, air exhaust system.
Electrophoretic cleaning equipment
Remove floating paint, attached to the body on the recovery of paint, the appearance quality of coating provided high, with UF liquid spray and immersion, the inverse process back into the main channel.
Ultrafiltration recovery device for electrophoretic paint
Provide the cleaning solution after electrophoresis, recover the paint and remove the impurity ions in the bath, reduce the conductivity of the bath, and use ED-RO device to purify UF solution instead of pure water to achieve full closure.
