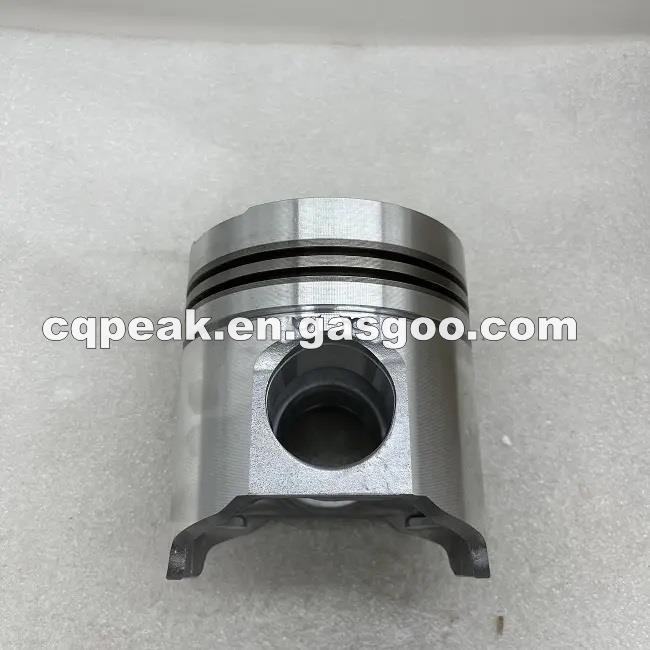

Diesel Engine Parts Piston 8N3102 For Caterpillar 3304 3306

Diesel Engine Parts Piston 8N3102 For Caterpillar 3304 3306
Diesel Engine Parts Piston 8N3102 For Caterpillar 3304 3306
Previous
Next
OEM No/Model:

8N3102,3304,3306

Export Ratio:

91% - 100%

Samples:

Charge

Sample Price:

100

Place of Region:

China

Market Type:

After Market

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa

Product Details

Product Name:

Diesel Engine Parts Piston 8N3102 For Caterpillar 3304 3306

Product Attribute:

Surface Treatment:Shinning Chrome

Material:Aluminium Cast Alloy

Diameter:120.65mm

No. of Cylinders:6

Size:129.9mm

Certification:ISO9001

Engine Type:Diesel

Pin:43.175*95

Standard or Nonstandard:Standard

Power:Hydraulic

Cold Style:Cold Style

Application:

Caterpillar

Product Description:



Piston For Caterpillar
S/N Engine  Ref No Cyl No Dia TL CD Pin
1 7C2431 A1744NP 3500 1 Ø 170.18 184 119.2 Ø 69.977*137.7
2 3500 Long Stroke  155-5271  1 Ø 170.18 98.5 47 Ø 69.977*136.5
3 D353 7N4515 1 Ø 158.75 208 131.68 Ø 62.225*130.5
4 D379 7N5036 1 Ø 158.75 208 131.68 Ø 62.225*130.5
5 D342/A   6 Ø 146.05 208 131.75 Ø 60.7*120
6 D342 7N1366 1 Ø 146.05 207.963 131.76 Ø 60.703*120
7 1592NP 4M9111 4 Ø 146 208 131.75 Ø 60.703*120
8 D343 9N2874 6 Ø 137.16 157.163 104.597 Ø 50.795*115.2
9 D346 8N0931 6 Ø 137.16 157.48 104.6 Ø 50.795*109
10 9Y7212/A    1 Ø 137.16  137.4 87.909 Ø 50.795*111.9
11 A2760 163-0930  1 Ø 137.16 88.9 52.5 Ø 50.795*111
12   7N3633 6 Ø 137.16 139.4 89.967 Ø 50.795*100.73
13 9Y4004   8 Ø 137.16 137.4 87.909 Ø 50.795*112
14 9Y7212   1 Ø 137.16 137.4 87.909 Ø 50.795*111.9
15 8N3182/1
8N3182X 		 9S3068 6 Ø 120.65 115.05 73.9 Ø 38.12*94.8
16 D330CA 9N5249 6 Ø 120.65 115.05 73.9 Ø 43.18*94.8
17 D3306 8N3102 6 Ø 120.65 129.9 73.9 Ø 43.175*95
18 8N3102M   6 Ø 120.65 129.9 73.9 Ø 43.18*94.8
19 8N3182 7N9804 6 Ø 120.65 115.2 73.838 Ø 38.1*94.8
20 1738NP A-1738NP.1W6757  6 Ø 120.65 129.9 73.914 Ø 43.175*94.7
21 3304/3306/D3/D4D  8N3180 4 Ø 120.65 115.1 73.838 Ø 38.108*95
22 D333/670/D334  9N5250 6 Ø 120.65 315.1 73.91 Ø 38.108*95
23 8N3102/A  A-1706NP  6 Ø 120.65 129.9 73.91 Ø 43.175*95
24 1653NP 8N3182 6 Ø 120.65 115 73.838 Ø 38.1*95
25 A1492N   1 Ø 120.65 115.1 73.85 Ø 38.1*94.7
26 D4 900181C 6 Ø 114.3 155.575 95.44 Ø 46.04*96
27 9N5408
1635N		 2W8410 1 Ø 114.3 93.3 58.877 Ø 38.115*81
28 2M5558   6 Ø 114.3 139.7 95.5 Ø 38.1*95
29 3116 611144 6 Ø 105 93 59 Ø 40*85
30 1404 HE42-2010156
HE42-2010176
HE42-2010196 		 4 Ø 101.6 93.9 44.01 Ø 24.77*80.5
